IRON OXIDE NATURAL INFORMATION

This mineral is very finely divided for easy dispersion and it is used as a color in many industrial applications. Additionally, it imparts salt spray resistance to coatings, is a good concrete color and has the best UV color stability of any commercial color.

IRON OXIDE NATURAL USES

This mineral is used mainly in coloring applications.

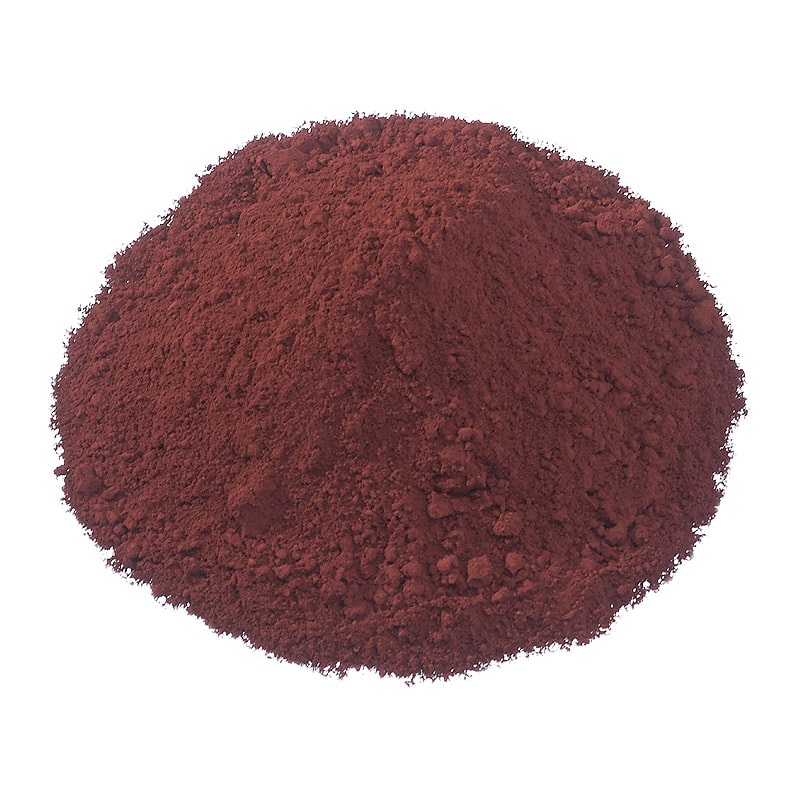

natural iron oxide

Grades of IRON OXIDE NATURAL

Iron Oxide #11

IRON OXIDE #11 INFORMATION

This is a natural red iron oxide. It is very finely divided for easy dispersion and it is used as a color in many industrial applications. Additionally, it imparts salt spray resistance to coatings, is a good concrete color and has the best UV color stability of any commercial color.

Packing: 50 lb paper bags on pallets
Origin: USA

download pdf
CHEMICAL ANALYSIS:
Fe203 80-82%
Si02 6.20%
Ca0 3.10%
Al203 2.90%
Mg0 2.00%
K20 0.53%
Total Chlorides 0.02%
Iron Oxide BA-G2

IRON OXIDE BA-G2 INFORMATION

This is a synthetic Iron Oxide of a red Iron Oxide. It has high purity and low lot to lot variation. It is suitable as a rouge for polishing.

Packing: Paper Bag 55 Lbs or Super Sack
Origin: USA

download pdf
CHEMICAL  ANALYSIS:
Fe203 99.+%
Na02 .024%
Al203 .013%
Si02 .026%
Loss on Ignition 5.0% Max
Moisture 1.5% Max
PHYSICAL SPECIFICATIONS:
Oil Absorption 25% Max
Bulk Density 36 Lbs/cu. ft
Specific Gravity 5.1
+400 Mesh Trace
Surface Area (BET) 7-8 sq m/gr
Water Soluble 0.5% Max
Average Particle Size .2-.5 micron
Iron Oxide Common Cosmetic Red

IRON OXIDE COMMON COSMETIC RED INFORMATION

This is a synthetic Iron Oxide of a red Iron Oxide. It has high purity and low lot to lot variation. It is suitable as a color for cosmetics. It is sold to an approximate color standard at lower prices rather than a guaranteed color standard.

Packing: Paper Bags  50 lbs net  Wooden pallets  plastic wrap
Origin: USA

download pdf
CHEMICAL ANALYSIS:
Fe203 99.+%
Na02 0.065%
Al203 0.025%
Si02 0.056%
Loss on Ignition 5.0% Max
Moisture 1.5% Max
Lead 0.2 ppm
Cadmium ND
Mercury 0.2 ppm
PHYSICAL SPECIFICATIONS:
Oil Absorption 25% Max
Bulk Density 36 Lbs/cu. ft
Specific Gravity 5.1
+400 Mesh Trace
Surface Area (BET) 7.8 sq m/gr
Water Soluble 0.5% Max
Iron Oxide Ferrite

IRON OXIDE FERRITE INFORMATION

This is a synthetic Iron Oxide of high purity and small lot to lot variation. It has low Chloride and low Silicon content. This item is recommended for hard ferrite production when compounded with strontium carbonate and recommended for soft ferrite production when compounded with nickel-zinc.

Packing: Super Sack on pallet
PRODUCTION STANDARD: ISO 9002
Origin: USA

download pdf
TYPICAL CHEMICAL ANALYSIS:
Fe203 99 – 99.3%
Cl 0.1 – 0.2
Si02 0.015 – 0.025
Fe3O4 0.2 – 1.0
Other metal oxides less than 0.03%
Moisture 0.2 – 0.5 %
PHYSICAL SPECIFICATIONS:
Tapped Density 0.6 -0.8 gr/cc
Surface Area 3.0 -4.5 sq m/gr
Average Dispersed Particle Size 0.5 – 0.8 micron
Agglomerate Size 20. – 40. micron
Iron Oxide Many Grades

IRON OXIDE MANY GRADES INFORMATION

These are synthetic Iron Oxides of various colors. Some have magnetic properties. They have a variety of uses including colors, ferrite core and magnetic applications.

#11 RED OXIDE OF IRON
This is a natural red iron oxide. It is very finely divided for easy dispersion and it is used as a color in many industrial applications. Additionally, it imparts salt spray resistance to coatings, is a good concrete color and has the best UV color stability of any commercial color.

IRON OXIDE BA-G2
This is a synthetic Iron Oxide of a red Iron Oxide. It has high purity and low lot to lot variation. It is suitable as a rouge for polishing.

IRON OXIDE, COMMON RED, COSMETIC
This is a synthetic Iron Oxide of a red Iron Oxide. It has high purity and low lot to lot variation. It is suitable as a color for cosmetics. It is sold to an approximate color standard at lower prices rather than a guaranteed color standard

IRON OXIDE, FERRITE TYPE
This is a synthetic Iron Oxide of high purity and small lot to lot variation. It has low Chloride and low Silicon content. This item is recommended for hard ferrite production when compounded with strontium carbonate and recommended for soft ferrite production when compounded with nickel-zinc.

Need More Information?

If you are looking for a physical or chemical analysis of this mineral, then please feel free to request a complete analysis from us.
We are happy to send you any additional information you might need.
