HIGH PURITY QUARTZ INFORMATION

High Purity Quartz is a true 21st century material. It is available as 35 ppm total impurities and a 10 ppm total impurities product. It is used in quartz crucibles for electronic and semiconductor applications.

HIGH PURITY QUARTZ USES

High Purity Quartz is used for numerous electrical applications.

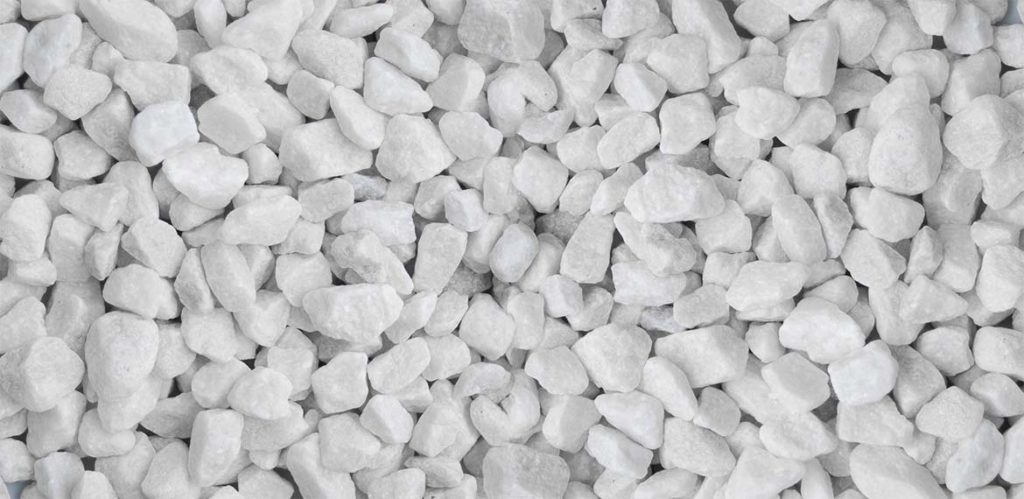

high purity quartz

Grades of HIGH PURITY QUARTZ

HPQ E2 Spherical and Fused

HPQ E2 SPHERICAL AND FUSED INFORMATION

High Purity Quartz is a true 21st century material. It is available as 35 ppm total impurities and a 10 ppm total impurities product. It is used in quartz crucibles for electronic and semiconductor applications.

TYPICAL CHEMICAL ANALYSIS
Silicon Dioxide (SiO2) 99.99+%
Iron (Fe) 2 ppm
Aluminum (Al) 10 ppm
Calcium (Ca) 2 ppm
Sodium Ion (Na+) 0.1 ppm
Potassium Ion (K+) 0.2 ppm
Chlorine Ion (Cl-) 0.1 ppm
PHYSICAL PROPERTIES
Type non-porous sphere
Particle Size, Max — micron 2.0
Particle Size, Ave. — micron 0.6
Bulk Density, loose — lgr/cc 0.2
Bulk Density, tapped — lgr/cc 0.5
Dry Color White
Moisture Content 0.03% Max
HPQ NC1 LA12

HPQ NC1 LA12 INFORMATION

This is both a very high purity Silica and finely divided it is used as a filler where UV transmission and lack of alpha emitting elements is important. High Purity Quartz is completely different from standard commercial grades; the buyer can expect substantially different results due to the near zero impurities.

Chemical content of the solid material
SiO2 99.996%
Impurities 35 ppm
Max values of other elements
Na 4 ppm
K 1.5 ppm
Li 5 ppm
Al 28 ppm
Ca 1 ppm
Fe 1 ppm
Ti 5 ppm
U 0.5 ppb
Th 0.3 ppb
WATER-SOLUBLE IONS
F- mg/l <0.05
Cl mg/l 0.16
NO2 mg/l <0.05
Br mg/l < 0.1
Lead 5.0 < 0.1
NO3 mg/l 0.42
PO43- mg/l < 0.2
SO42- mg/l < 0.2
Particle size per cilas
-50 micron 99.73%
-20micron 73.07%
-10 micron 45.03%
-5 micron 28.17%
-2 micron 13.79%
-1 micron 4.98%
WHITENESS
RX 98.0
RY 97.8
RZ 97.6
R457 97.4
CONDUCTIVITY
mS/m(S/cm) 0.21
pH
pH 6.5
HPQ NC1 LA12 Statistics lot 6980

HPQ NC1 LA12 STATISTICS LOT 6980 Information

Please contact us for more information about this mineral grade.

PQ NC1 LA5

PQ NC1 LA5 INFORMATION

This is both a very high purity Silica and micronized to 5 micron average particle size. It is used as a filler in electronic applications where UV transmission and a lack of impurities, including traces of alpha emitting elements, are important. High Purity Quartz is completely different from standard commercial grades; the buyer can expect substantially different results due to the near zero impurities.

GRAIN SIZE DISTRIBUTION
d10 3m,
d50 5 ±1m
d90 9.m
d100 17.m
WATER-SOLUBLE IONS
F- mg/l <0.05
Cl mg/l 0.16
NO2 mg/l <0.05
Br mg/l < 0.1
Lead 5.0 < 0.1
NO3 mg/l 0.42
PO43- mg/l < 0.2
SO42- mg/l < 0.2
CHEMICAL ANALYSIS
SiO 99.996% Minimum
Impurities 35 ppm Maximum
WHITENESS
RX 98.0
RY 97.8
RZ 97.6
R457 97.4
CONDUCTIVITY
mS/m(S/cm) 0.21
pH
pH 6.5
HPQ NC1-A 100-300

HPQ NC1-A 100-300 INFORMATION

The material is calcined at 1050°C according to our standard procedures.

Chemical content of the solid material:
SiO2 > 99.999%
  NC1A
Element Mean Max.
Al 21 26
Ca 0,1 0,3
Fe 0,1 0,3
Na 0,5 0,8
K 0,3 0,6
Li 4 5
B <0,2 <0,2
Co 0, 01
Cr 0, 01
Cu 0, 01
Mg <0,05
Mn 0,01
Ni 0, 01
Ti 3
Zr <0,1
  Grain size distribution:
  Typical value Limit
D10 80µm Minimum 70µm
D50 155µm Range 135-200µm
D90 270µm Maximum 350µm
HPQ NC1-A Statistics lot 806

HPQ NC1-A STATISTICS LOT 806 Information

Please contact us for more information about this mineral grade.

HPQ NC2 0-150

HPQ NC2 0-150 INFORMATION

Typical grain size distribution: d10 = 25 m, d50 = 63 m, d90 = 110 m, for details see own grain size distribution sheet for each big bag or production lot.

Chemical content of the solid material:
SiO2 > 99.996%
  Na K Li Al Ca Fe Ti Co Cr Cu Ni Mn
Typical content 3 1,1 0.8 11 0.8 0.5 7 0.01 0.02 0.02 0.02 0.02
Max content 5 2 1 17 2 1 9 0.03 0.1 0.1 0.1 0.1
Content of water-soluble iones
F- mg/l <0.05
Cl- mg/l <0.2
NO2- mg/l <0.05
Br- mg/l <0.1
NO3- mg/l 0.14
PO4 3- mg/l <0.2
SO4 2- mg/l 0.3
Whiteness
RX RY RZ R457
93,6 93,3 92,2 92,1
Conductivity
mS/m
( S/cm)
0,2
pH
pH 5,6
HPQ NC2-A 100-300

HPQ NC2-A 100-300 INFORMATION

This material has impurities totally 10 ppm. used in quartz lamps, tubing, and crucibles.

The material is calcined at 1050°C according to our standard procedures.

download pdf
Chemical content of the solid material:
SiO2 > 99.999%
Content of other elements in ppm:
  NC A
Element Mean Max.
Al 7,0 9,5
Ca 0,3 0,5
Fe 0,1 0,3
Na 0,8 1,2
K 0,3 0,6
Li 0,7 1,0
B 0,1 0,3
Co 0, 01
Cr 0, 01
Cu 0, 01
Mg 0,05
Mn 0,01
Ni 0, 01
Ti 6
Zr 0,1
Grain size distribution:
  Typical value Limit
D10 80µm Minimum 70µm
D50 155µm Range 135-200µm
D90 270µm Maximum 350µm
HPQ NC2-A Crucible Grade

HPQ NC2-A CRUCIBLE GRADE INFORMATION

The material is calcined at 1050°C according to our standard procedures.

Chemical content of the solid material:
SiO2 > 99.999%
Grain size distribution:
  Typical value Limit
D10 103µm Minimum 95µm
D50 192µm Range 170- 240µm
D90 340µm Maximum 450µm
Content of other elements in ppm:
  NC2A
Element Mean Max.
Al 7,0 9,5
Ca

0,1

0,5
Fe 0,1 0,4
Na 0,9 1,3
K 0,3 0,6
Li 0,7 1,0
B 0,1 0,3
Co 0, 01
Cr 0, 01
Cu 0, 01
Mg 0,05
Mn 0,01
Ni 0, 01
Ti 10
Zr 0,1
HPQ4 DH

HPQ4 DH INFORMATION

High-purity quartz manufactured with unique deposits from the southeastern United States. The material is very consistent silica quartz.

Origin: USA

download pdf
CHEMICAL ANALYSIS
  Typical Value (ppm) Maximum
Al 14.0 18.0
B ≤ 0.1 0.1
Ca 1.0 1.5
Co ≤ 0.01 0.01
Cr ≤ 0.03 0.03
Cu ≤ 0.03 0.03
Fe 0.3 0.8
K 0.6 1.0
Li 0.5 1.0
Mg < 0.1 0.1
Mn < 0.1
Na 1.0
Ni ≤ 0.03
Ti 1.3
Particle Size
  Typical Value Limit
D10 1.6 ≥ 95
D50 11.8 170 – 320
D90 29.5 ≤ 550
